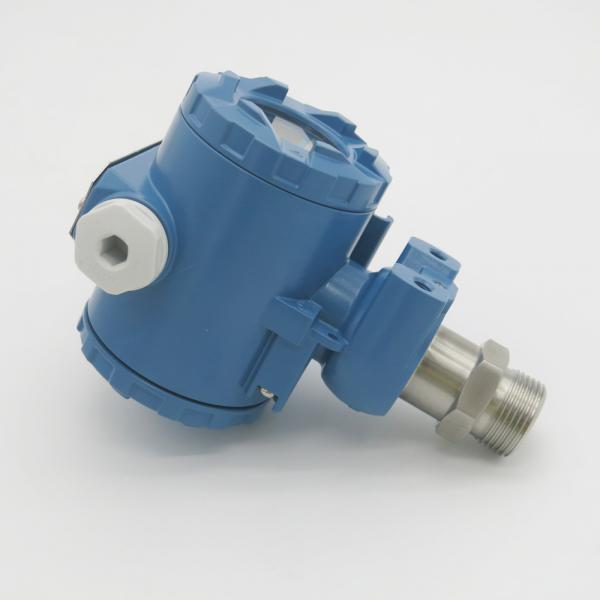

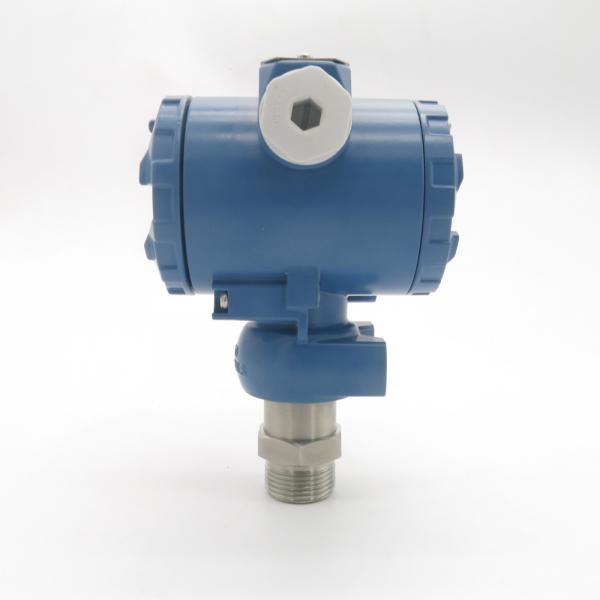

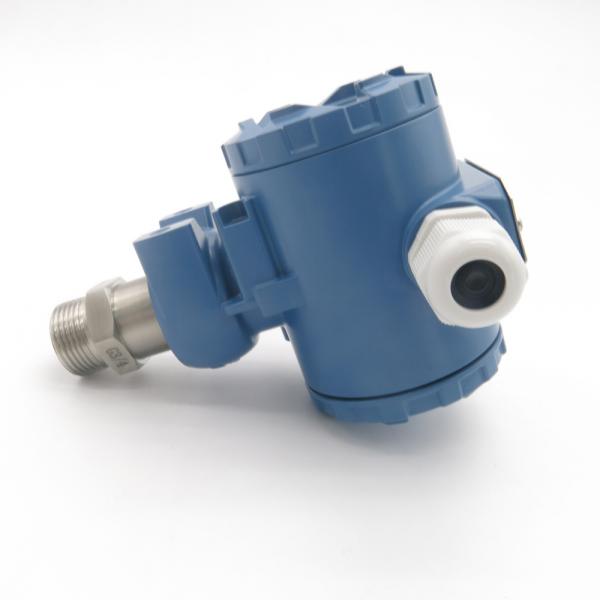

Model:JDYW-04
We can provide OEM service
E-mail: pearls@judongkj.cn
Product description：

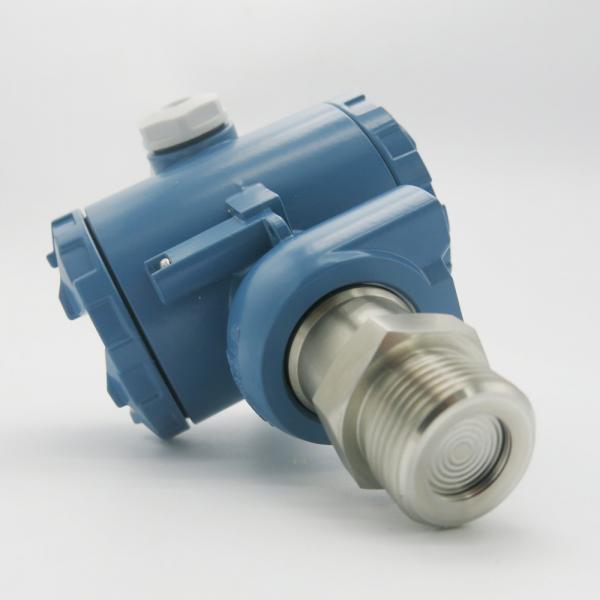

No cavity flat die structure design, prevent to fouling and viscous objects,preventive maintenance and wash conveniently. All wetted parts are made of stainless steel and fully welded. Completely avoid the use of any internal seal components, and therefore can be used in almost all media. The shell is also made of stainless steel.
Application: food, medicine, chemical industry, health and wine industry,etc.
Download:JDYW Pressure Transmitter Data
Product features
1. minimum measuring range 0-1bar
2. maximum measuring range 0-100bar
3. Adjustable zero
4. Lightning protection and protection radio frequency interference
5. Intrinsically safe explosion-proof or flameproof
6. Small size, beautiful appearance, high cost performance.
7. High precision, high stability, high reliability
8. It has RS485 protocol optional
9. No cavity flat die structure design, prevent to fouling and viscous objects,preventive maintenance and wash conveniently.
Technical details
|
Measuring medium or Application |
Liquid,gas or steam etc. |
|
Operation mode |
It can be measured liquid level and pressure. Gauge pressure, absolute pressure, sealing pressure |
|
Installation mode |
1. Measuring pressure installation: water tank, pipe, other equipment at any position. |
|
Display mode |
Can be selected display type and without display type. |
|
Range |
0-1bar to 0-100bar |
|
Display unit |
Bar, Mpa,Pa,Kpa,PSI,etc. Optional |
|
Power supply |
9VDC......36VDC,24VDC. |
|
Accuracy |
0.5%F.S |
|
Output signal |
4～20mA、1～5V、0～5V、1～10V、0～10V、RS485 protocol etc. |
|
Safe Overload |
200%FS |
|
Working Temp. |
-25～80℃，-25～200℃ etc. |
|
Environmental Temp. |
-20～80℃ |
|
Diaphragm material |
SUS316L Stainless steel |
|
Shell material |
All wetted parts are made of stainless steel and fully welded，Shell anticorrosion aluminum. |
|
Process connection |
Tri-Clamp、Threaded connection、Flange connection. |
|
Explosion-proof grade |
Exd IIC T6 |
|
Protection grade |
IP65 |
|
weight |
0.5kg |
Application
Sanitation industry: gas,purified water, water, milk, fruit juice, wine, honey, milk powder and other requirements of the health food and pharmaceutical industry pressure and liquid level measurement.
Other industries: the measurement of liquid level and pressure in coal water slurry, liquid, soft particle, slurry, viscous and dust.
Selection considerations
Provided to be some technical details:
1. measuring range
2. measurement medium (liquid and gas specific name)
3. output signal
4. maximum temperature
5. Process connection
6. Display or without display
