Sanitary Pressure Transmitter

Now：Home?Products?Sanitary Pressure Transmitter

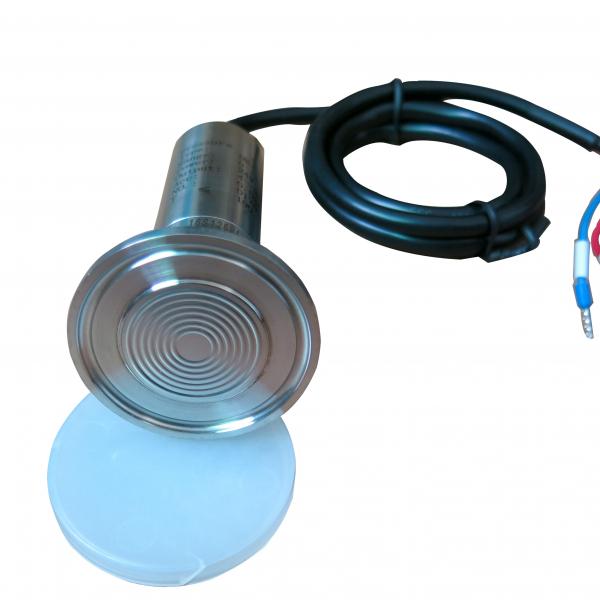

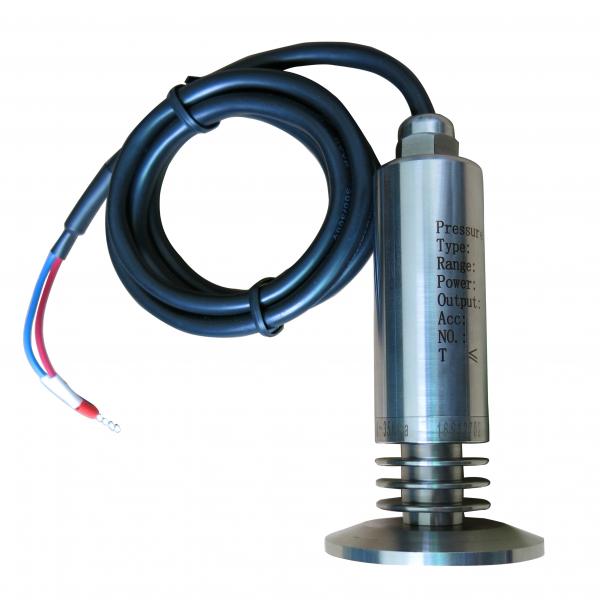

Waterproof Sanitary Pressure Transmitter

Model:JDYW-02

We can provide OEM service

E-mail: pearls@judongkj.cn

Product description：

No cavity flat die structure design, prevent to fouling and viscous objects,preventive maintenance and wash conveniently. All wetted parts are made of stainless steel and fully welded. Completely avoid the use of any internal seal components, and therefore can be used in almost all media. The shell is also made of stainless steel.

Application: food, medicine, chemical industry, health and wine industry,etc.

Download:JDYW Pressure Transmitter Data

Detail

Product features

1. minimum measuring range 0-1bar

2. maximum measuring range 0-100bar

3. Lightning protection and protection radio frequency interference

4. Intrinsically safe explosion-proof

5. Small size, beautiful appearance, high cost performance.

6. High precision, high stability, high reliability

7. No cavity flat die structure design, prevent to fouling and viscous objects,preventive maintenance and wash conveniently.

Technical details

Application	Liquid,gas or steam etc.
Operation mode	It can be measured liquid level and pressure. Gauge pressure, absolute pressure, sealing pressure
Installation mode	1. Measuring pressure installation: water tank, pipe, other equipment at any position. 2. measure level installation: bottom or bottom side of water tank.
Display mode	Can be selected display type and without display type.
Range	0-1bar to 0-100bar
Power supply	9VDC......36VDC,24VDC.
Accuracy	0.5%F.S
Output signal	4～20mA、1～5V、0～5V、1～10V、0～10Vetc.
Safe Overload	200%FS
Working Temp.	-25～80℃，-25～200℃ etc.
Environmental Temp.	20～80℃
Diaphragm material	SUS316L Stainless steel
Shell material	All wetted parts are made of stainless steel and fully welded
Process connection	Tri-Clamp、Threaded connection、Flange connection.
Protection grade	IP68
weight	0.5kg

Application

Sanitation industry: gas,purified water, water, milk, fruit juice, wine, honey, milk powder and other requirements of the health food and pharmaceutical industry pressure and liquid level measurement.

Other industries: the measurement of liquid level and pressure in coal water slurry, liquid, soft particle, slurry, viscous and dust.

Selection considerations

Provided to be some technical details:

1. measuring range

2. measurement medium (liquid and gas specific name)

3. output signal

4. maximum temperature

5. Process connection

6. Display or without display
